Air Conditioning Unit Compressors

Air Conditioning Unit Compressors

Air conditioning unit compressors typically stop working because of a couple of problems: time and also hrs of operation (wear), or abuse. There are some failings that can take place in other places in the system that will create a compressor failing, but these are much less usual unless the system has been significantly abused.

Generally, abuse is an outcome of prolonged running with incorrect freon cost, or consequently of inappropriate solution in the process. This incorrect solution can include overcharging, undercharging, setting up the wrong starter capacitor as a replacement, getting rid of (as opposed to repairing/replacing) the thermal limiter, not enough oil, blending incompatible oil kinds, or wrong oil, mounting the compressor on a system that had major exhaustion without taking appropriate actions to get rid of the acid from the system, setting up the wrong compressor (too little) for the system, or installing a brand-new compressor on a system that had a few other failings that were never ever detected.

The compressor can stop working in only a handful of various ways. It can stop working open, fail shorted, experience a bearing failure, a piston failure (throw a pole), or experience a shutoff failing. That is virtually the entire listing.

When a compressor fails open, a cord inside the compressor breaks. This is unserviceable as well as the symptom is that the compressor does not run, though it may hum. If the compressor stops working open and also following the actions here do not repair it, the system may be an excellent candidate for a brand-new compressor. This failing causes no additional failings as well as will not harm the remainder of the system; if the remainder of the system is not decrepit then it would certainly be cost-effective to just put a new compressor in.

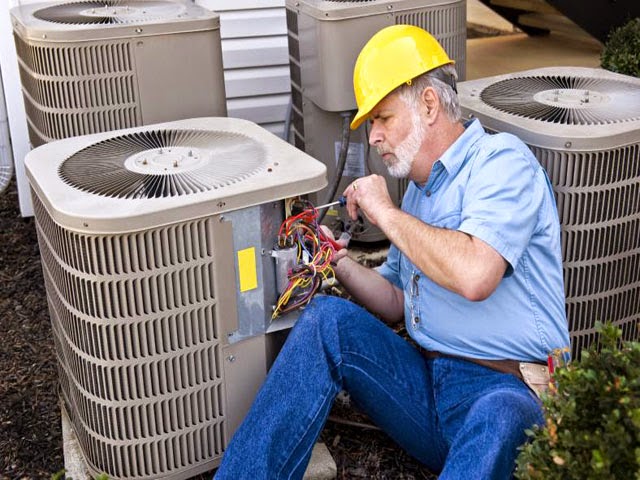

Checking for a stopped working open compressor is easy. Pop the electrical cover for the compressor off, and also get rid of the wires and the thermal limiter. Using an ohmmeter, gauge the resistance from one terminal to one more throughout all three terminals of the compressor. Likewise, measure the impedance to the situation of the compressor for all 3 terminals.

You ought to read low resistance values for all incurable to incurable links (a couple of hundred ohms or less) as well as you ought to have a high insusceptibility (several kilo-ohms or greater) for all terminals to the instance (which is ground). If any one of the terminals to terminal links is a really high insusceptibility, you have a failed open compressor. In really unusual instances, a failed open compressor may show a low insusceptibility to ground from one terminal (which will certainly be one of the terminals related to the stopped working open). In this situation, the busted cord has actually moved and is speaking to the instance. This problem – which is rather uncommon yet possible – might create a breaker to trip and also could lead to a misdiagnosis of unsuccessful short. Take care right here; do an acid test of the materials of the lines before determining exactly how to wage repair work.

When a compressor fails short, what happens is that insulation on the cords has actually worn off or burnt or damaged inside the compressor. This enables a cable on an electric motor winding to touch something it should not touch – most generally itself a turn or more along on the motor winding. This causes a “shorted winding” which will certainly quit the compressor promptly as well as create it to heat up and burn internally.
